Pink material displayed on upper slab #7

New issue
Closed
opened 2026-01-31 14:52:51 +00:00 by esteban.dugueperoux · 3 comments
esteban.dugueperoux commented 2026-01-31 14:52:51 +00:00
Copy link

Hi @Ryan,

Not sure if it is a Bonsai or Blender issue, not enough expertise to check that, but opening the House.ifc of https://hub.openingdesign.com/OpeningDesign/Bonsai_Tutorials/src/branch/main/069000_20250226_1738%20-%20Adding%20strip%20footings step on Linux (Ubuntu 24.04) with different Blender release with "Viewport Shading: Materiel Preview' enabled:

  • Blender 4.5.4 LTS with Bonsai 0.8.4:

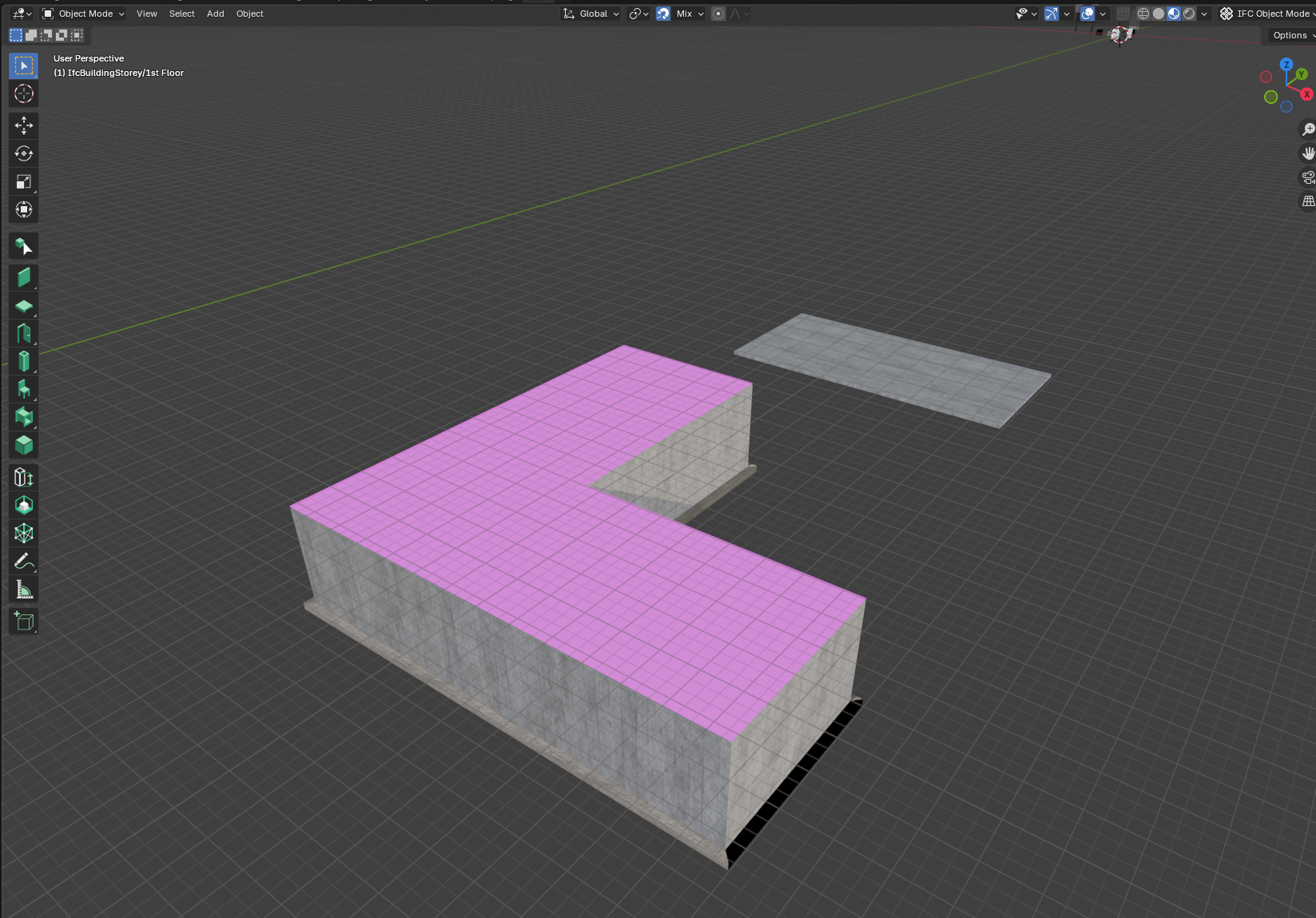

blender 4.5.3

with "GPUTexture: Blender Texture Not Loaded!" message in console.

  • Blender 5.0.1 with Bonsai 0.8.4, also tested with bonsai 0.8.5-alpha260130:

same as previous screenshot, upper slab in pink,
with "gpu.texture | ERROR Failed to create GPU texture from Blender image" message in console.

In addition, if I attempt to open this ifc file by drag and dropping it to blender, this last crash (segfault).

Same with Blender 5.1.0 Alpha with bonsai 0.8.5-alpha260130.

While according to video I should see:

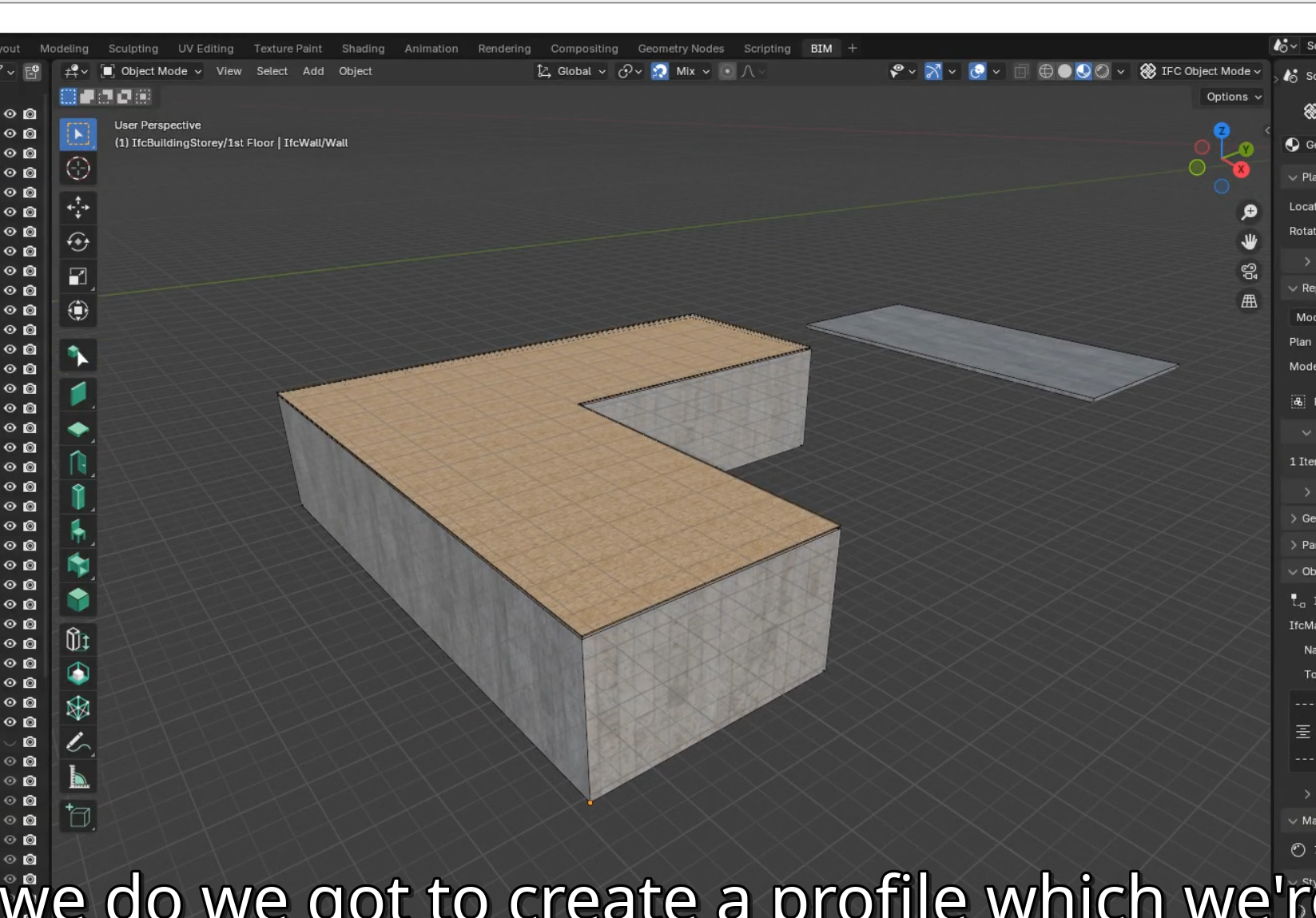

expected from video

this seems related to Materials/Materials.blend file, indeed oS_Wood_OSB.

Regards.

Hi @Ryan, Not sure if it is a Bonsai or Blender issue, not enough expertise to check that, but opening the House.ifc of https://hub.openingdesign.com/OpeningDesign/Bonsai_Tutorials/src/branch/main/069000_20250226_1738%20-%20Adding%20strip%20footings step on Linux (Ubuntu 24.04) with different Blender release with "Viewport Shading: Materiel Preview' enabled: - Blender 4.5.4 LTS with Bonsai 0.8.4: ![blender 4.5.3](/attachments/83708f54-900f-49d5-912e-e54519eb08ae) with "GPUTexture: Blender Texture Not Loaded!" message in console. - Blender 5.0.1 with Bonsai 0.8.4, also tested with bonsai 0.8.5-alpha260130: same as previous screenshot, upper slab in pink, with "gpu.texture | ERROR Failed to create GPU texture from Blender image" message in console. In addition, if I attempt to open this ifc file by drag and dropping it to blender, this last crash (segfault). Same with Blender 5.1.0 Alpha with bonsai 0.8.5-alpha260130. While according to video I should see: ![expected from video](/attachments/98cda3cc-9b86-4614-a346-fd7f0289e644) this seems related to Materials/Materials.blend file, indeed oS_Wood_OSB. Regards.
blender 4.5.3.png
1.4 MiB
expected from video.png
1.3 MiB
theoryshaw commented 2026-02-01 14:02:50 +00:00
Owner
Copy link

Thanks @esteban.dugueperoux for sharing.
I wasn't able to replicate this, however.

Try the 'update current style' button in video...

If that doesn't work, try...

os: Windows
os_version: 10.0.19045
python_version: 3.11.13
architecture: ('64bit', 'WindowsPE')
machine: AMD64
processor: Intel64 Family 6 Model 158 Stepping 10, GenuineIntel
blender_version: 5.0.0
bonsai_version: 0.8.5-alpha260201
bonsai_commit_hash: 2d2e8e5
bonsai_commit_date: 2026-02-01T09:21:27+01:00
preprocessor_version: IfcOpenShell 0.0.0
originating_system: Bonsai 0.8.2-alpha250224-2d0bd97
Thanks @esteban.dugueperoux for sharing. I wasn't able to replicate this, however. Try the 'update current style' button in video... <video src="/attachments/60dfda4a-2147-44a3-9653-3fb3d0856a40" title="20260201_0759.mp4" controls></video> If that doesn't work, try... <video src="/attachments/20c255d3-06cc-4913-aa9f-ae8902ca6966" title="20260201_0802.mp4" controls></video> ``` os: Windows os_version: 10.0.19045 python_version: 3.11.13 architecture: ('64bit', 'WindowsPE') machine: AMD64 processor: Intel64 Family 6 Model 158 Stepping 10, GenuineIntel blender_version: 5.0.0 bonsai_version: 0.8.5-alpha260201 bonsai_commit_hash: 2d2e8e5 bonsai_commit_date: 2026-02-01T09:21:27+01:00 preprocessor_version: IfcOpenShell 0.0.0 originating_system: Bonsai 0.8.2-alpha250224-2d0bd97 ```
20260201_0759.mp4
1.8 MiB
20260201_0802.mp4
1.4 MiB
esteban.dugueperoux commented 2026-02-07 20:37:24 +00:00
Author
Copy link

Hi,

Thanks, the second option works.

Otherwise https://hub.openingdesign.com/OpeningDesign/Bonsai_Tutorials/src/branch/main/081000_20250307_1247%20-%20Walls%20now%20show%20their%20layers README seems to contains a broken link.

Regards.

Hi, Thanks, the second option works. Otherwise https://hub.openingdesign.com/OpeningDesign/Bonsai_Tutorials/src/branch/main/081000_20250307_1247%20-%20Walls%20now%20show%20their%20layers README seems to contains a broken link. Regards.
theoryshaw commented 2026-02-11 13:53:04 +00:00
Owner
Copy link

Thanks, fixed!

Thanks, fixed!
